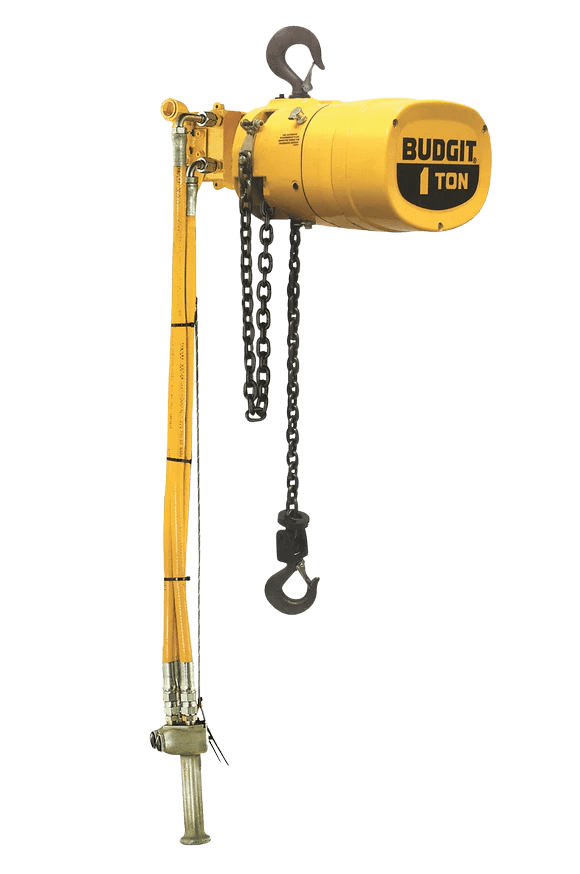

Budgit Series 2200 Air Hoist - 1 Ton

Capacity: 1 Ton                Connection: Hook Mount            Hoist Lifting Speed: 23 ft/min

Pendant drop is 4 ft shorter than Standard Lift as standard

90 PSI Compressed Air Required

Fabric chain bag included

• FAST LIFTING SPEEDS. As fast as 45 FPM lifting and 120 FPM lowering on the 1/2 Ton unit.
• PORTABLE & RUGGED. Aluminum frame and end-cover makes it lightweight and a rugged design.
• BUILT TO LAST. Hoistaloy® load chain for heavy duty or stainless steel for spark resistant and medium duty loads.
• SECURE & RELIABLE. Positive action, heavy-duty shoe type brake that stops and holds the load. Limit stops prevent over-travel when lifting and lowering.
• EASY TO HANDLE. Inlet air swivel with built-in strainer provides free hoist movement.
• EXTERNAL BRAKE ADJUSTMENT. Allows for quick adjustment of brake responsiveness and sensitivity for exceptional load positioning and control.
• SMOOTH OPERATION. Multi-vane rotary air motor for high torque and smooth operation. Equa-torque gearing (heat treated alloy steel spur gears) are accurately machined to provide a close meshed, compact gear reduction.
• PENDANT THROTTLE. Ergonomic pendant throttle control features fast pendant-to-hook reaction time and one-handed operation.
• SPECIAL APPLICATIONS. Tapped exhaust port (1/2 NPTF) for cleanroom applications or add a supplemental muffler for even quieter operation.

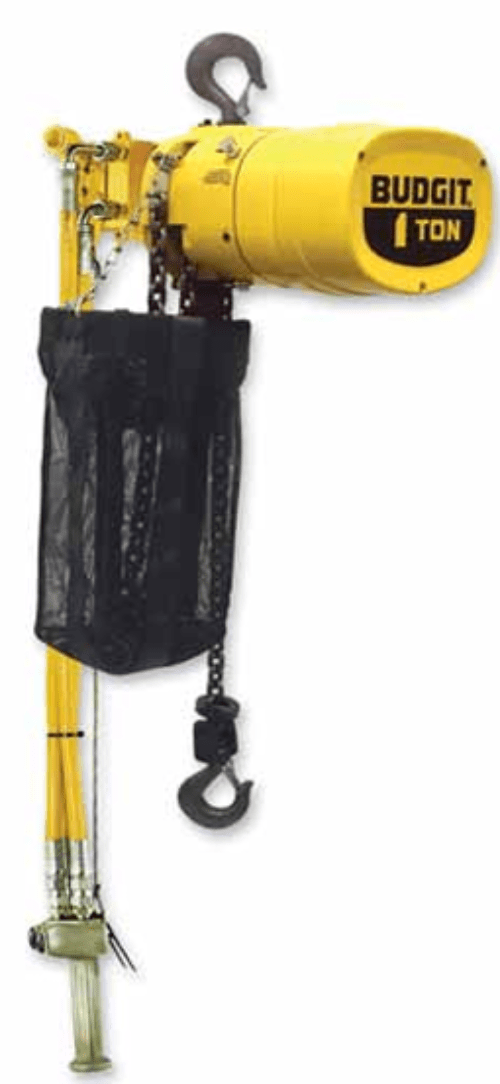

• FABRIC CHAIN CONTAINER STANDARD. Standard for lifts up to 20 ft.
