C250 Bridge Crane

Givens G-Rail™ Bridge Cranes are engineered for the lowest rail weight, the highest strength and greatest versatility.

Strength Features

• Ceiling-hung and floor-supported cranes are possible
• Spans up to 10m
• In most circumstances, cranes equipped with Slant Trusses can carry 2 bridges without an upgrade, but always consult an engineer
• Large columns allow the crane to be free-standing, so it does not have to be tied to building columns
• The runway supports itself over a large span; there is no need for I-beams to support the runway
• Accidental overloads are possible due to the strength

Lightweight Features

• G-Rail Cranes may be the lightest in the world
• The rail is very light yet extremely strong
• The crane profile of the G-Rail™ bridge crane, combined with Slant-Truss bolt-on reinforcements, creates one of the lightest lifting systems in the world.

Versatility Features

• Cantilevers are possible
• Open-ended cranes are possible
• Telescopes are possible
• Custom columns are possible
• Non-rectangular column arrangements are possible
• To a large extent, column positions can be shifted during the installation to fit around machinery
• The entire crane can often be set up or moved on a weekend
• Slant Trusses or Rail-on-Rail reinforcements can be added or removed using ordinary wrenches

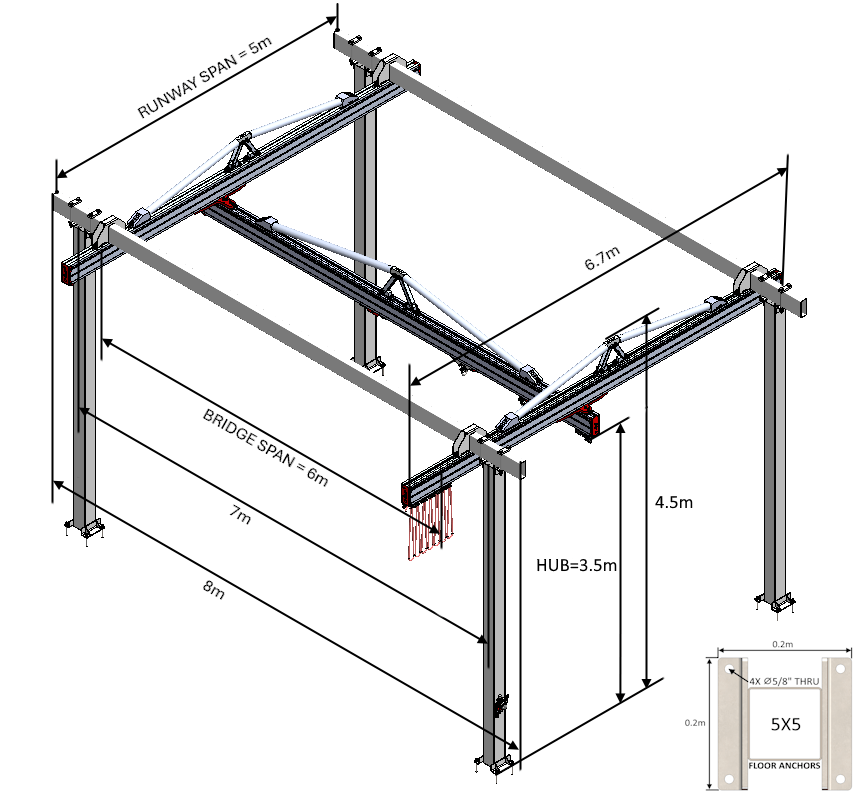

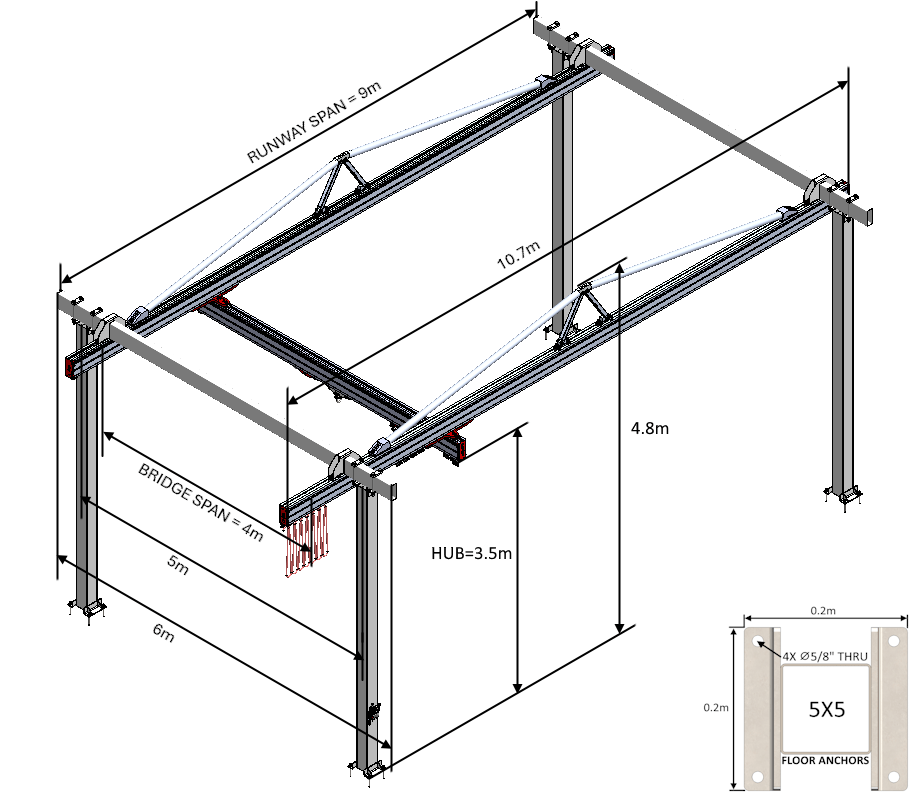

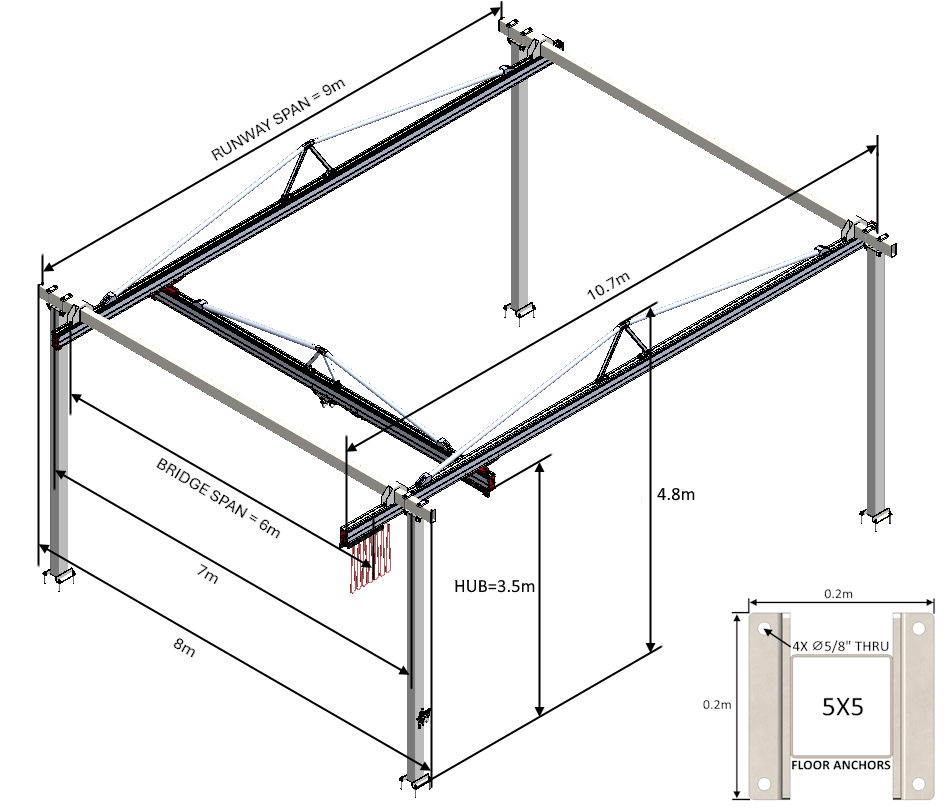

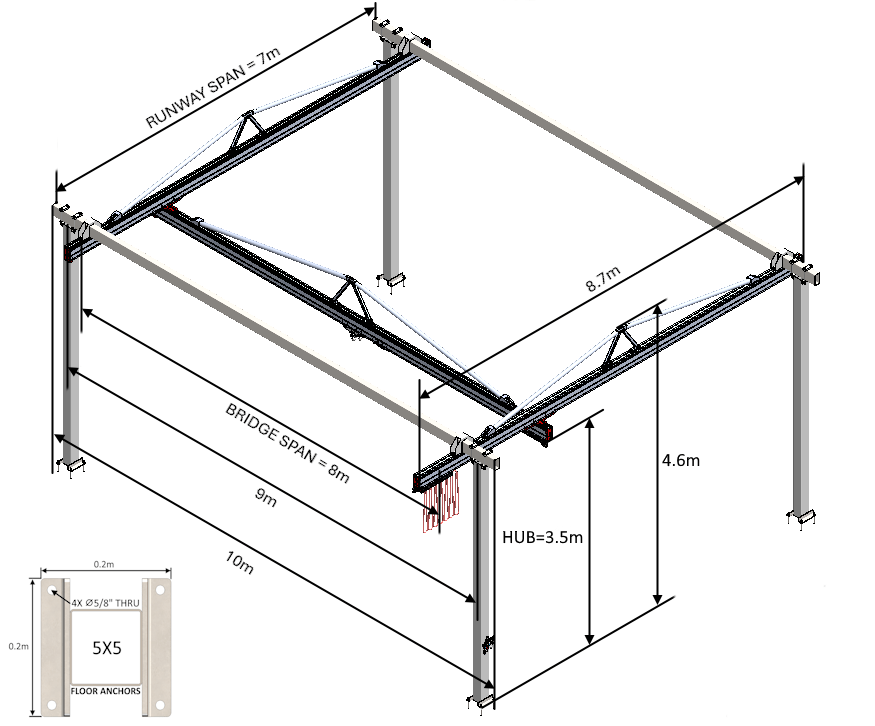

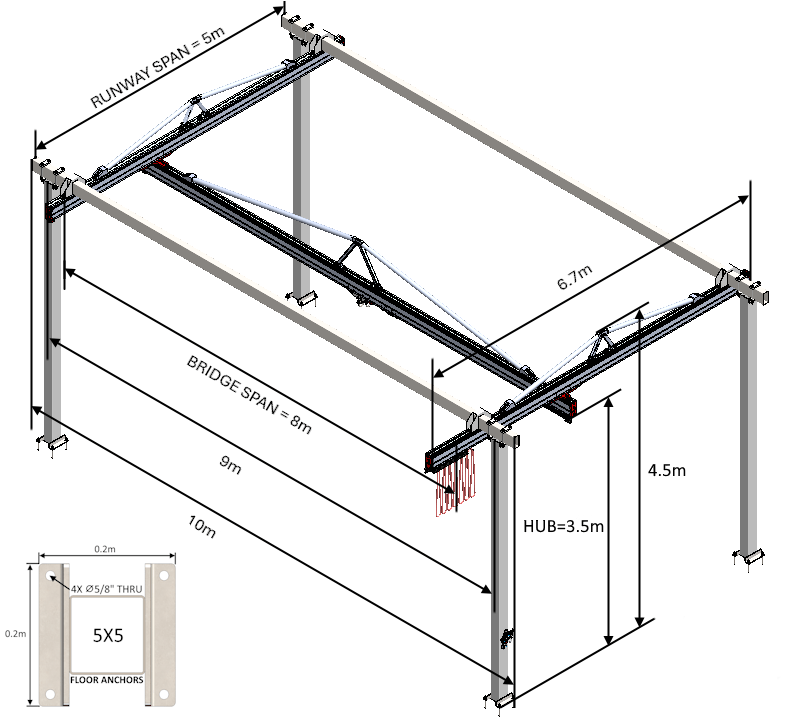

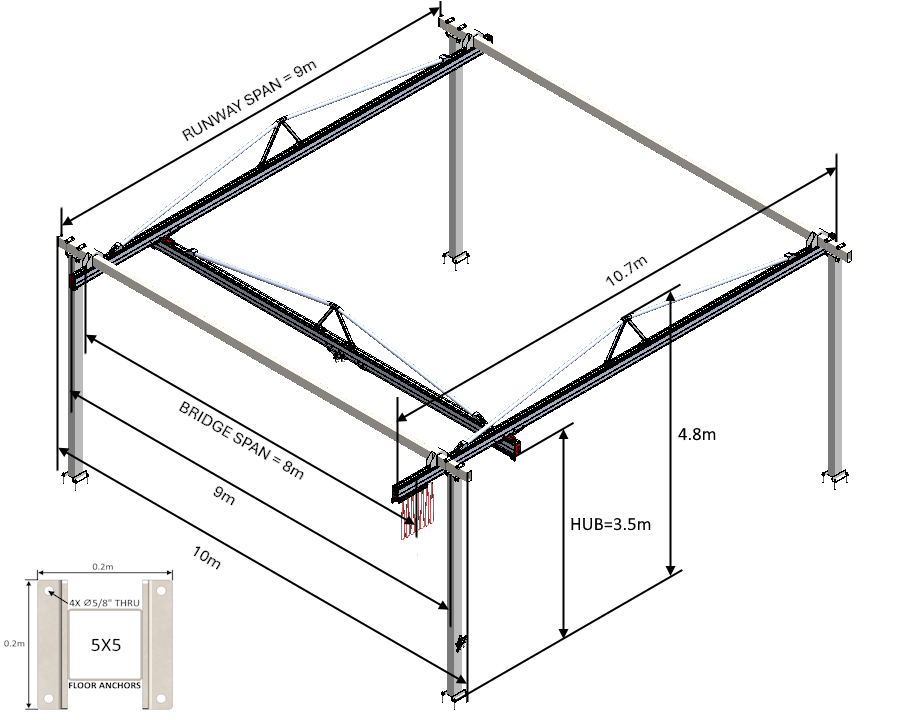

Height Under Boom - 3.5 meters
