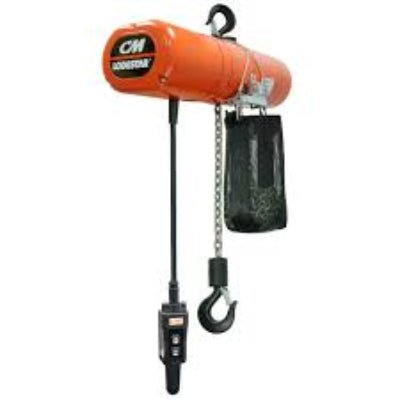

CM Lodestar NH Single Speed Electric Chain Hoist - 1/2 Tonne

Capacity: 1/2 Tonne            Connection: Hook Mount         Hoist Lifting Speed: 16 ft/min

*Chain bag is included  *Standard pendant length is 4' shorter than lift length

FEATURES and BENEFITS:

• Heavy Duty DC Brake is designed for a long service life. Brake location allows for quick access and easy inspection.
• Lifetime grease-lubricated Gear Box means no oil change out is required. Precision gears provide better wear and longer life.
• Clutch located outside the Gear Box allows for easy access which eliminates the need for complete disassembly and reduces downtime.
• Lifetime grease-lubricated Gear Box and helical gearing ensures efficient operation. Heavy duty rated motors. Hoist workmanship backed by a lifetime warranty.
• Clutch is located outside the load path which prevents slipping of the load in an overload condition when brake is not powered.
• 5-Pocket Lift Wheel provides better chain and lift wheel engagement for smoother lifting and reduced vibration which equates to less wear and a longer chain life.
• Load Chain is designed and manufactured in the USA by Columbus McKinnon. Star Grade chain is zinc plated to protect against corrosion. 2-ton, single-reeved units feature 10 mm load chain as standard.
• Exceeds H4 requirements, engineered for high duty cycles and the toughest applications

FABRIC CHAIN CONTAINER AND RIGID HOOK SUSPENSION STANDARD

LIFETIME WARRANTY

METRIC RATED

CSA APPROVED

OPTIONS:

• Double DC Brake - Two independent acting DC Brakes for redundant braking. Field Installation Kit available.
• AC Electrical Brake
• Variable speed drive (VFD) or traditional 2 speeds available
• Primary and secondary transformer fusing
• Rotatable limit switch - Designed for quick reset of limit position
• Metal and stainless steel chain containers
• **Contact us directly to add special options
