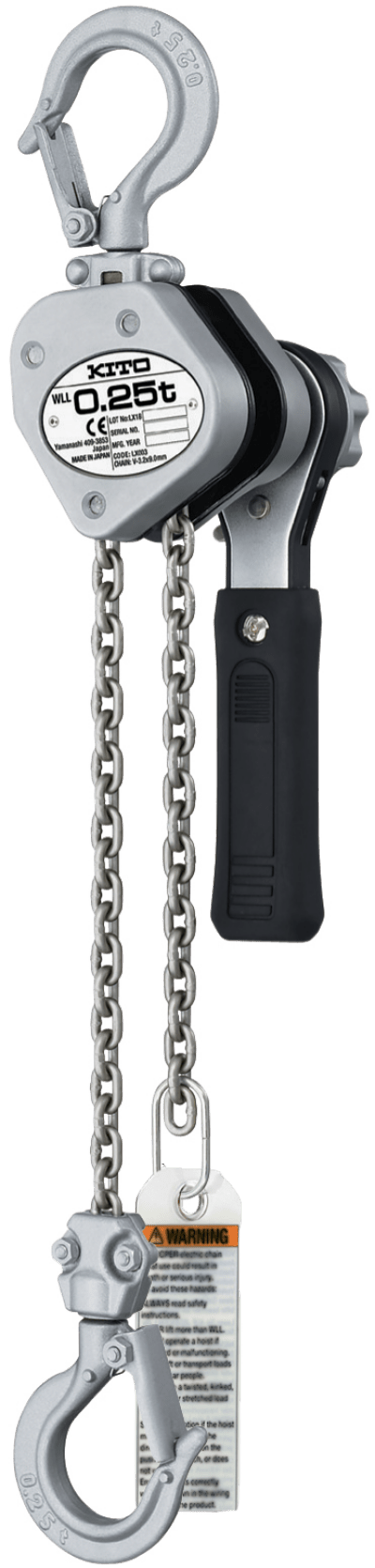

Kito LX Miniature Lever Hoist

CAPACITY: ¼ to ½ metric tonnes

STANDARDS

ASME B30.21 Safety Standard
ASME HST-3 Performance Standard
At rated capacity, load bearing parts are stressed to 25% of their limit

OPTIONS

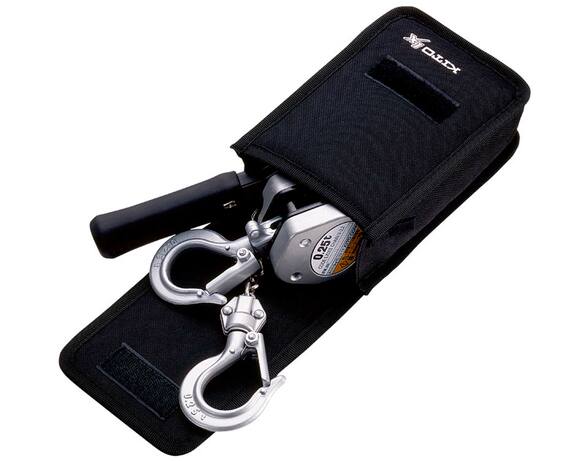

A carrying case can be attached to your belt for added convenience (LX003-5)
Lift lengths can be customized to suit requirements

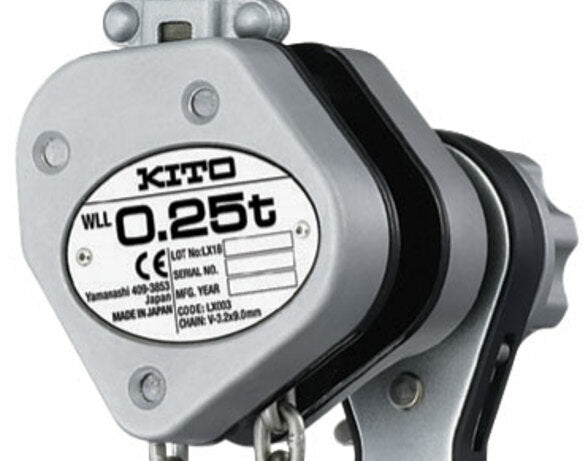

BODY

Durable die cast aluminum
Steel internal frame
Extremely compact, lightweight, and portable. Designed for use in tight spaces

HOOKS

Forged, heat-treated alloy steel hooks open gradually, without fracturing under excessive load
Top and bottom hooks equipped with self-closing heavy-duty hook latch
Top and bottom hooks rotate 360 degrees

LOAD CHAIN

Abrasion and corrosion-resistant nickel-plated finish
Grade 100 heat-treated
Standard Lift: 5 feet

BRAKE

Weston-style load brake
Enclosed to protect from dust, rain, and dirt

GEARS

Sealed gears and brake are protected against damage from dust and water

OPERATION

360 degree handle rotation
Rubber handle grip for non-slip operation

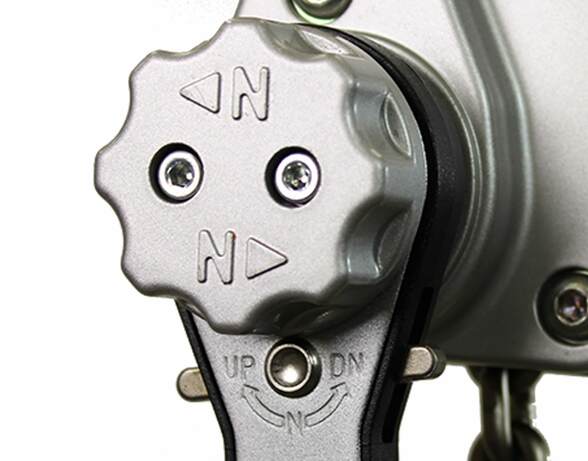

Patented spring-loaded freewheel mechanism for easy adjustment of the load-chain and protection against accidental freewheeling under load
Single-step reduction gearing for precision placement to within 1 mm
Induction heat-treated and case-hardened
