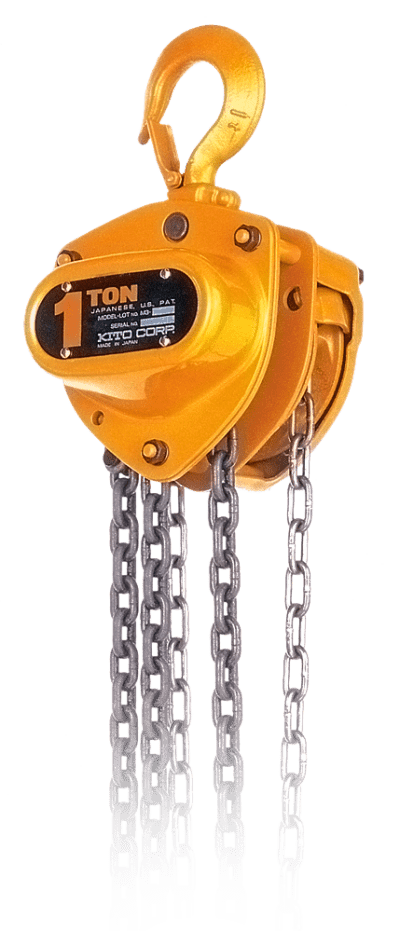

Kito M3CB Heavy Duty Hand Chain Hoist

CAPACITY: 1/2 to 5 metric tonne

STANDARDS

ASME B30.16 Safety Standard
ASME HST-2 Performance Standard
At rated capacity, load-bearing parts are only stressed to 25% of their limit

OPTIONS

Chain container to keep chain clean and out of the way
Slip clutch to protect from damaging overloads
Corrosion-resistant chain for corrosive environments
Custom lift lengths to suit your requirements
Plain or geared trolley mount

**Contact us directly to add special options

BODY

Heavy-duty, high-impact steel construction (similar weight to aluminum)
Rugged gear case and hand wheel cover
Compact design for low headroom and portability

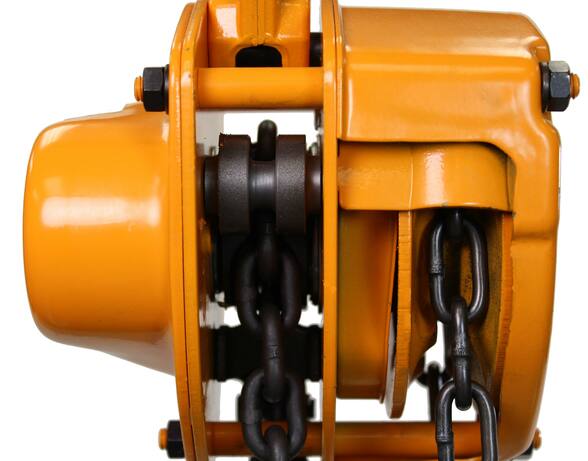

Open load sheave for easy inspection and cleaning without dismantling the unit

HAND CHAIN

High-quality steel

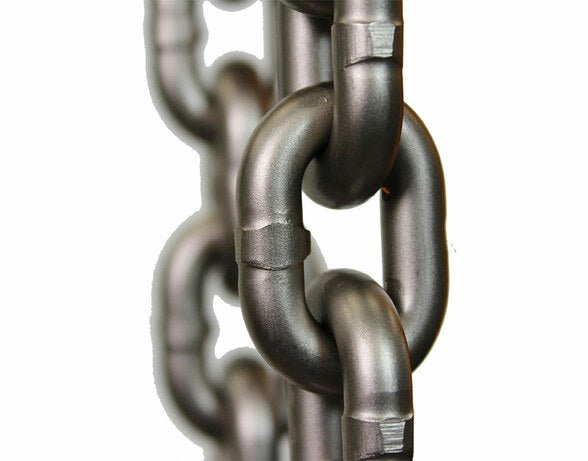

LOAD CHAIN

Grade 100
Heat-treated, low-weight manganese alloy steel
High-impact steel chain guide
Standard Lift: 8 feet

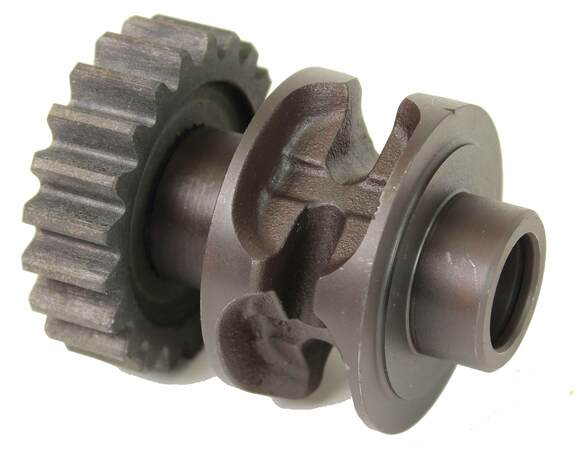

GEARS

Double reduction gearing requiring very low effort to operate
Induction heat-treated and case-hardened
Enclosed to protect from dust and water

HOOKS

Forged, heat treated carbon steel hooks open gradually and do not fracture
Self-closing top and bottom hooks with heavy-duty hook latch

OPERATION

Hand chain operated
Reduced operator fatigue through efficient drive train

BEARINGS

Maintenance-free sealed bearings increase reliability and reduce pull force required to lift loads

BRAKE

Double pawl springs for extremely reliable operation and instant brake activation
Enclosed to protect from dust, rain, and dirt

OPERATING CONDITIONS

Recommended for -40˚ to +60˚ C

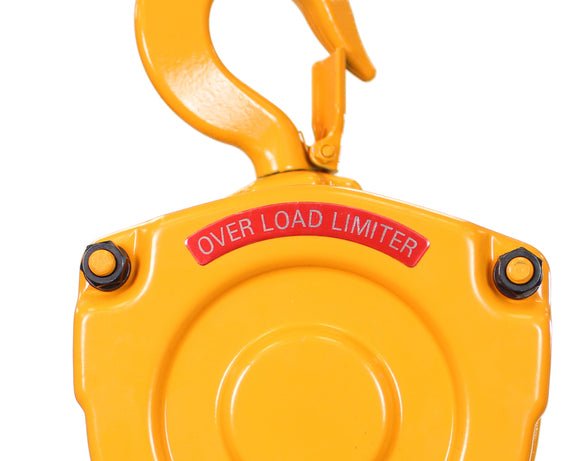

OPTIONAL OVERLOAD PROTECTION

Slip clutch device prevents the hoist from lifting damaging loads beyond rated capacity
